Site selection and immediate actions
Choose a level spot with at least 20 feet of clear overhead space and a 3 foot radius free of structures. To install residential flagpole start by calling 811 to locate underground utilities, measure and mark the center point, then confirm local setback and permit requirements. For a standard 20 to 25 foot pole plan on a 3 foot deep footing and use a sleeve or anchor kit sized for the pole diameter.
Tools and materials
- Tools: shovel, post hole auger or rented backhoe, level, tape measure, rotary hammer for concrete, socket set, adjustable wrench, ladder and safety harness for taller poles.
- Materials: flagpole (aluminum or steel), base plate or ground sleeve, 60 to 90 lb bag concrete mixes (multiple bags depending on hole volume), anchor bolts or anchor kit, gravel for drainage, halyard, cleats, snap hooks, and an American Flag sized to pole height.
- Safety gear: gloves, eye protection, work boots, and a helper for lifting.
Confirm regulations and utilities
Contact local building or zoning office to verify permit and setback rules. Many towns require clearances from property lines, easements, or right of way. Always call 811 at least three business days before digging. If utilities run across the proposed footing, choose a different location.
Choosing the right pole and American Flag
Select Flagpoles made for residential use with wall thickness and hardware rated for your local wind load. Aluminum poles are lighter and resist corrosion; steel poles are stronger and can support heavier flags. Choose an American Flag size that matches pole height: a common pairing is 3x5 foot flag for poles up to 20 feet, 4x6 foot for 20 to 30 foot poles.
| Pole Height | Suggested Flag Size | Minimum Footing Depth |
|---|---|---|
| 10 to 15 feet | 2x3 ft or 3x5 ft | 2 feet |
| 20 to 25 feet | 3x5 ft | 3 feet |
| 30 to 40 feet | 4x6 ft | 4 feet |

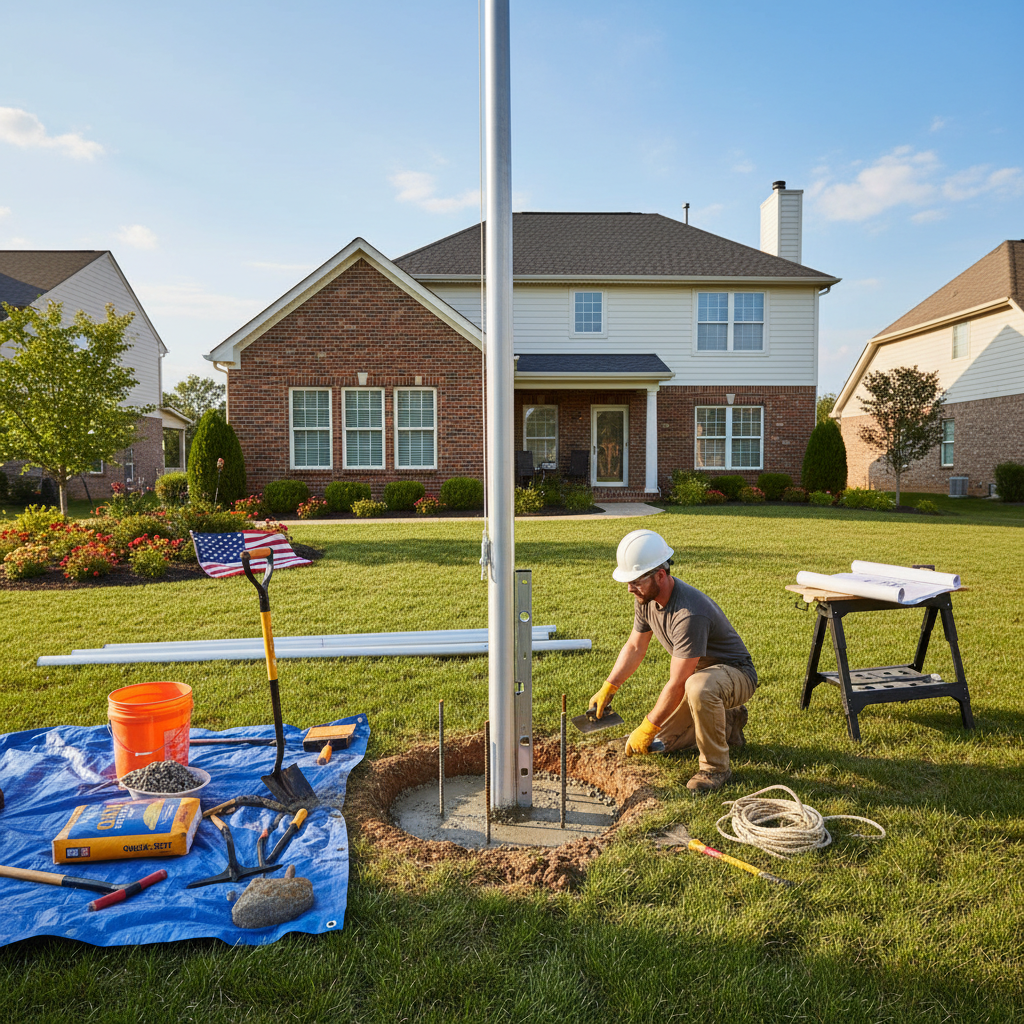

Step by step: dig and form the footing
Measure and mark the center of the pole location. Dig a hole sized for the recommended footing diameter. For most residential poles plan a footing diameter of roughly three times the pole base diameter or at least 12 inches across for smaller poles. For a 20 to 25 foot pole use a 12 to 18 inch diameter hole at 3 feet deep. Place 4 inches of compacted gravel at the bottom for drainage.
Install a temporary wooden sled or use a sonotube form to hold concrete if you prefer a neat finish. If using a ground sleeve, set it plumb and brace it so the top is level and slightly above final grade to prevent water intrusion. Mix concrete per manufacturer directions and pour in lifts, tamping to remove air voids. Slope the top of the concrete away from the sleeve or base plate to shed water.
Anchor bolt placement and curing
Position anchor bolts or embedded threaded rod while concrete is wet. Use a template to ensure correct bolt spacing and alignment with the pole base plate. Allow concrete to cure at least 48 to 72 hours for initial set and up to seven days for full strength before loading with the pole. Cold weather slows cure time so follow bag instructions for low temperatures.
Mount the pole and attach hardware
Assemble pole sections on level ground if the pole ships in pieces. For tapered or sectional poles, follow manufacturer torque specs for fasteners. With a helper, lift the pole onto the base plate or into the ground sleeve. Tighten base bolts evenly in a star pattern to secure the flange. If using a ground sleeve, slide the pole into the sleeve and set a retaining bolt or pin at the designed depth.
Install the halyard line through the truck and pulley top using a continuous rope or two-halved halyard tied together. Attach a spring snap or swivel at the halyard ends for flag clips. Fit a cleat to the pole base within reach and run the halyard so it wraps neatly on the cleat and does not chafe on any edges. For a permanently mounted halyard, use a stainless steel shackles and replace rope annually.
Raising the American Flag and proper etiquette
Attach the top and bottom snaps of the American Flag so it hangs freely and does not rub against the pole. Raise the flag briskly to the truck position and then secure. When flying at half-staff follow federal guidance for dates or directives and raise the flag briskly to the top before lowering to half-staff. Use a flag size appropriate to the pole so the flag clears the ground by at least several feet when fully extended.
Maintenance schedule and seasonal checks
- Weekly: inspect halyard for fraying, check snaps and swivel for corrosion, retighten cleat fasteners as needed.
- Monthly: check pole plumb with a level and confirm the base bolts are secure.
- Annually: clean the pole with mild detergent, lubricate moving parts, inspect for rust or paint failure, and replace worn halyard rope.
- Wind events: lower the flag during severe weather. Consider a wind-rated flag or a pole with a hinge base for high-wind regions.
Troubleshooting common problems
- Wobbling pole: check base bolts and concrete condition. If the concrete has cracked around anchors, excavate and repair or replace footing.
- Halyard jams: remove halyard, check pulley and truck for debris, and replace rope if braided strands are broken.
- Flag wraps around pole: install a swivel clip or a spreader device at the top snap or use a heavier flag material to reduce wrapping.
Optional accessories and upgrades
Consider a hinge base for safe lowering, internal halyards to reduce vandalism, or an automatic light for night display. Finials and trucks come in different finishes; match stainless hardware with aluminum or stainless poles for best corrosion resistance. A protective sleeve cover will prevent water pooling at the sleeve opening.
Quick reference checklist
| Task | Key detail |
|---|---|
| Call 811 | At least three business days before digging |
| Permit | Check local regulations for setbacks and height limits |
| Footing | 3 ft deep for 20-25 ft pole, 4 ft for taller poles |
| Curing time | 48-72 hours before light loading, 7 days for full strength |
Final tips for longevity
Match flag size to pole height to limit undue wind load. Use marine grade hardware where possible. Replace the flag at the first sign of wear; a well maintained American Flag presents better and reduces stress on the halyard. Keep a simple maintenance log to track inspections and replacements.
When to call a pro
Hire a licensed contractor if the pole exceeds 40 feet, if the site requires engineered footings, or if buried utilities constrain standard installation. Professional installers can supply wind certification and ensure compliance with codes for elevated or exposed sites.
