What Is the Correct Flagpole Ground Sleeve Installation Depth?
For most residential installations, bury the ground sleeve to at least 10% of total pole height plus 2 feet, so a 20 ft pole goes 4 ft deep. That is the safe working answer. The confusion arises because three different formulas circulate online, and none of them mentions when the others apply. Here is how they differ and which one to actually use.
The Three Formulas Side by Side
| Formula | Calculation for 20 ft pole | Source / Use case |
|---|---|---|
| 10% of pole height | 2 ft | Manufacturer ground-set spec (pole-length math, not total hole depth) |
| 10% + 2 ft | 4 ft | Standard residential installer rule; absorbs wind load and gravel layer |
| 1/6 of pole height | ~3.5 ft | Code-oriented minimum; conservative floor for sandy or soft soil |
The 10% rule describes how much of the flagpole shaft the manufacturer ships below-grade, it is a pole-length spec, not a hole-depth prescription. The 10%+2ft rule is what most residential installers actually dig because it adds room for a 3–6 inch gravel drainage layer, proper sleeve seating, and a safety margin against lateral wind force. The 1/6 rule (~3.5 ft for a 20 ft pole) is a code-style minimum and the right floor in soft or sandy soil where the 10% number alone would be dangerously shallow.
Use 10%+2ft as your baseline for every installation, then adjust up for frost line, soil type, or poles taller than 25 ft. Never go below the 1/6 minimum regardless of what the formula says.
Depth-by-Pole-Height Quick Reference
The table below uses the 10%+2ft formula as the primary target and flags where the 1/6 minimum exceeds it. Add 3–6 inches to every figure for the gravel drainage bed beneath the sleeve.
| Pole height | 10%+2ft depth | 1/6 minimum | Use this depth | Hole width |
|---|---|---|---|---|
| 5 ft | 2.5 ft | ~1 ft | 2.5 ft | 8 in |
| 6 ft | 2.6 ft | ~1.2 ft | 2.6 ft | 8–10 in |
| 20 ft | 4 ft | ~3.5 ft | 4 ft | 10–12 in |
| 25 ft | 4.5 ft | ~4.2 ft | 4.5–5 ft | 12–14 in |
Browsing residential options? The FlagStars flagpole collection lists pole heights from compact to full-size so you can confirm the above-grade height before doing your depth math. For 5 ft and 6 ft yard poles, see the 5 ft flagpoles and 6 ft flagpoles collections.
When Does Frost Line Override the Formula?
In freeze-thaw climates, always dig below the local frost line, even if that exceeds your formula depth. Frost heave can jack a sleeve upward over multiple winters and tilt the pole visibly. U.S. frost depths range from 0 inches (Gulf Coast, Hawaii) to roughly 8 feet (northern Minnesota, Alaska border regions), check your local building department for the exact figure before you dig.
The practical rule: whichever is deeper, the formula result or the local frost depth, wins. A 20 ft pole in Chicago (frost line ~42 in, or 3.5 ft) still needs 4 ft per the formula; a 20 ft pole in Minneapolis (frost line up to 60 in, or 5 ft) needs 5 ft regardless of the formula. Always call 811 before digging to locate buried utilities.
How Does Soil Type Change the Depth?
Standard depth tables assume firm, well-compacted loam. Adjust as follows:
- Firm loam / compacted fill: Use the 10%+2ft formula as-is.
- Clay (expansive): Add 6 inches to total depth; clay expands when wet and contracts when dry, increasing lateral movement on the sleeve.
- Sandy or loose soil: Add 6–12 inches and increase hole diameter by 2 inches; loose soil provides less lateral resistance per inch of depth.
- Rocky soil: You may not be able to reach full depth. Add a wider concrete collar (16 in diameter) to compensate for reduced depth, get a structural engineer's sign-off for poles over 20 ft.
- Coastal / waterlogged sites: Treat the same as sandy soil; also elevate the sleeve top 1 inch above grade to prevent saltwater pooling inside the tube.
Ground Sleeve vs. Direct Burial: Which Installation Method Is Right for You?
A ground sleeve is a metal tube set in concrete; the pole slides in from above and can be lifted out without breaking the foundation. Direct burial encases the pole base permanently in concrete and requires excavation to remove. Here is how to decide:
| Factor | Ground sleeve | Direct burial |
|---|---|---|
| Removability | Yes, pull pole, foundation stays | No, excavate to remove |
| Storm damage | Replace pole only; foundation intact | Replace pole and foundation |
| HOA / property sale | Sleeve stays; new owner slides in any compatible pole | Concrete stump remains if pole removed |
| Initial cost | Slightly higher (sleeve hardware) | Lower upfront |
| Best for | Most residential installs | Permanent commercial or large-pole sites |
For residential use, a ground sleeve is the right default. The sleeve's inner diameter should be 1/8 to 1/4 inch larger than the pole's butt section for a snug but removable fit. Set the sleeve so its top sits approximately 1 inch above finished grade, this keeps water from pooling inside and corroding the pole base. Browse ground-set hardware in the FlagStars flagpole bases collection.
How Much Concrete Do You Need for a Flagpole?
A quick rule of thumb: roughly 1 cubic foot of concrete per 10 ft of pole height. For a 20 ft residential pole, that is about 3–4 bags of 60 lb quick-set concrete (approximately 240 lbs total). For a 25 ft pole, plan for 4–5 bags.
Step-by-step for the concrete pour:
- Dig to your calculated depth plus 3–6 inches for the gravel layer.
- Pour 3–6 inches of coarse gravel or crushed stone into the bottom for drainage and to reduce frost heave.

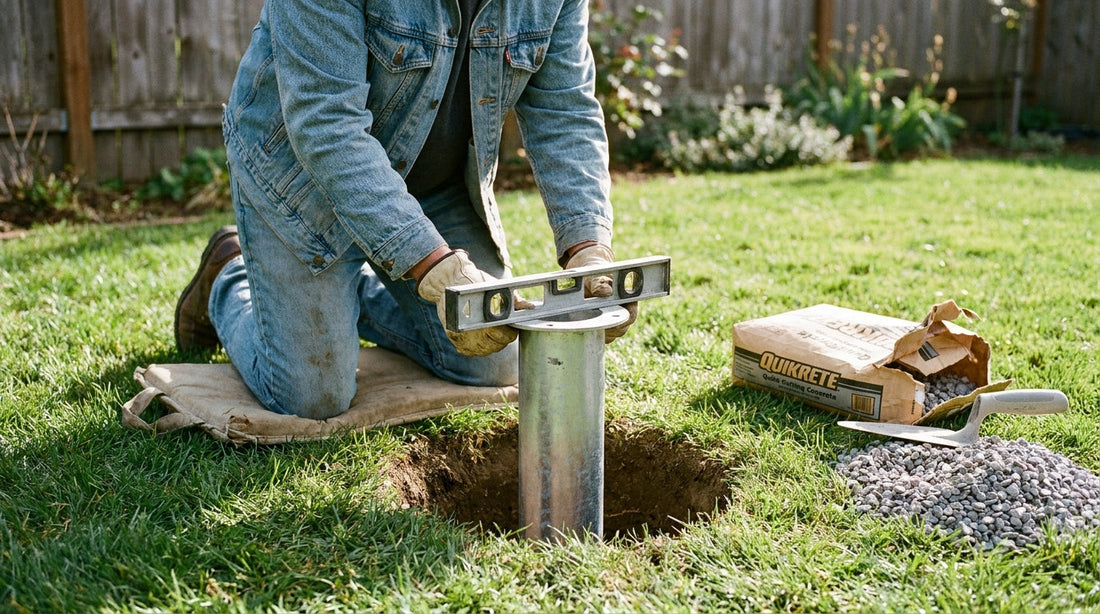

- Set the sleeve in the hole, check vertical with a level on two perpendicular sides, and brace temporarily with scrap lumber.
- Mix quick-set concrete per bag directions and pour in lifts, tamping out air pockets.
- Confirm the sleeve top sits ~1 inch above grade; adjust before concrete stiffens.
- Quick-set firms in 20–40 minutes but wait a full 24–48 hours before inserting and loading the pole.
If you are sizing up a taller installation, the 25 ft flagpoles collection includes poles that require the 4.5–5 ft depth range described above. Once your foundation is cured, you will also want the right halyard rope sized to your pole height before raising the flag.
Common Mistakes to Avoid
- Using the 10% rule as your hole depth. That number describes the below-grade pole length, not the full hole depth including gravel bed and safety margin. Always add the extra 2 ft.
- Skipping the gravel layer. Without 3–6 inches of drainage stone at the bottom, water collects under the sleeve and accelerates corrosion and frost heave.
- Ignoring the frost line. The formula gives a minimum; frost depth gives the floor in cold climates. Never choose the shallower of the two.
- Flushing the sleeve top with grade. A sleeve set even with the ground collects standing water. Keep the top 1 inch above grade.
- Loading the pole too soon. Quick-set reaches handling strength fast but full structural cure takes 24–48 hours. Raising a flag before that risks tipping the still-curing foundation.
- Skipping the 811 call. Striking a buried gas, electric, or water line while digging is both dangerous and costly. Call 811 at least three business days before you dig.
- Using a sleeve that is too large. Excess clearance between sleeve and pole lets the pole rattle and lean. Target 1/8 to 1/4 inch of clearance, not more.
Frequently Asked Questions
How deep should a 20 ft flagpole ground sleeve be set?
Set the sleeve to a minimum of 4 ft deep (10% of 20 ft, plus 2 ft). Dig the hole 4 ft 3–6 inches to leave room for the gravel drainage bed. In frost-prone regions, check your local frost depth, if it exceeds 4 ft, dig to that frost depth instead.
Which depth formula is correct: 10%, 10%+2ft, or 1/6?
Use 10%+2ft as your working target for residential installs. The plain 10% figure is a pole-length specification from manufacturers, not a full hole-depth guide. The 1/6 rule is a code-style minimum that matters most in soft or sandy soil. If the 1/6 minimum exceeds your 10%+2ft result, use the larger number.
How many 60 lb bags of concrete do I need for a flagpole?
Plan on roughly 1 cubic foot of concrete per 10 ft of pole height. For a 20 ft pole, that is 3–4 bags of 60 lb quick-set concrete. For a 25 ft pole, use 4–5 bags. Always mix per the manufacturer's instructions and wait 24–48 hours before loading the pole.
Does soil type change how deep I need to dig?
Yes. Firm, well-compacted loam lets you use the standard formula. Sandy or loose soil requires an additional 6–12 inches of depth and a wider hole. Expansive clay needs an extra 6 inches. Rocky ground limits depth but can be compensated with a wider concrete collar, consult a structural engineer for poles over 20 ft.
Should I use a ground sleeve or bury the pole directly in concrete?
A ground sleeve is the right choice for nearly all residential installations. It lets you remove or replace the pole without excavating the foundation, which matters for storm damage repair, HOA compliance, and property resale. Direct burial is a permanent method better suited to large commercial poles where removability is not a concern.
